Direct Drive Motor

65rpm Low Speed High Torque Servo Motor

1500w Permanent Magnet Direct Drive Motor For Large ceiling fan
65rpm Low Speed High Torque Servo Motor
65rpm Low Speed High Torque Servo Motor
65rpm Low Speed High Torque Servo Motor
65rpm Low Speed High Torque Servo Motor

Description

Reviews

Specifications

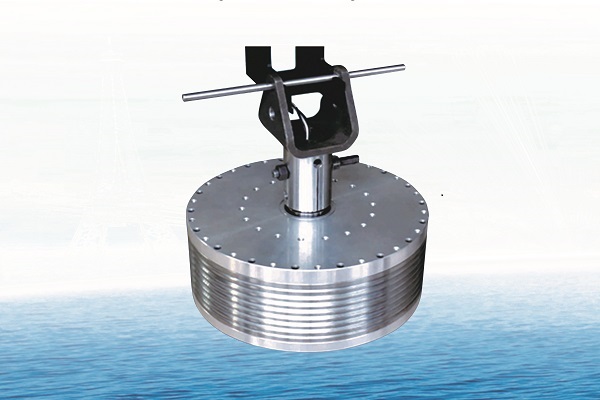

XingTai TFM3370 Direct Drive Motor for 7.3m Large Industrial Ceiling Fan:

Ultra-low power, Extreme energy saving!
Ultra-silent AC variable frequency motor ,
Ultra high motor performance (over 90%),
Patented roll welding design for magnet locking,
No sensor device design,
High purity copper automatic wire winding technology
TFM3370 Direct Drive Motor Specification
Under high voltage 380V
Motor Specification
Items Data Units Remark
Rated Voltage 380 Vac 380-440Vac
Rated Current 2.7 Amp
Rated Power 1500 Watt
Rated Efficiency 85% PCT
Rated Speed   62 RPM Related to fan characteristic
load
Max Speed  65 RPM
Rated Torque S1 232 Nm
Rated Torque S6 250 Nm
Ke 5800 V/Krpm Related to Temperature
KT 86 Nm/A
Temperature Sensor KTY84-130 N/A Standard Features
Insulation Grade 150 F-class Insulation
IP Grade IP55 N/A
Motor Diemension
OD 330 mm
Height 128 mm
Fixed shaft OD 52 mm Fixed shaft extension
diameter
Motor Weight 32.5 kgs
Motor Weight 35 kgs With lifting lugs
TFM3370 Direct Drive Motor Specification
Under low voltage 220V
Motor Specification
Items Data Units Remark
Rated Voltage 220 Vac 380-440Vac
Rated Current 4.7 Amp
Rated Power 1500 Watt
Rated Efficiency 85% PCT
Rated Speed   62 RPM Related to fan characteristic
load
Max Speed  65 RPM
Rated Torque S1 232 Nm
Rated Torque S6 250 Nm
Ke 3340 V/Krpm Related to Temperature
KT 49.4 Nm/A
Temperature Sensor KTY84-130 N/A Standard Features
Insulation Grade 150 F-class Insulation
IP Grade IP55 N/A
Motor Diemension
OD 330 mm
Height 128 mm
Fixed shaft OD 52 mm Fixed shaft extension
diameter
Motor Weight 32.5 kgs
Motor Weight 35 kgs With lifting lugs
