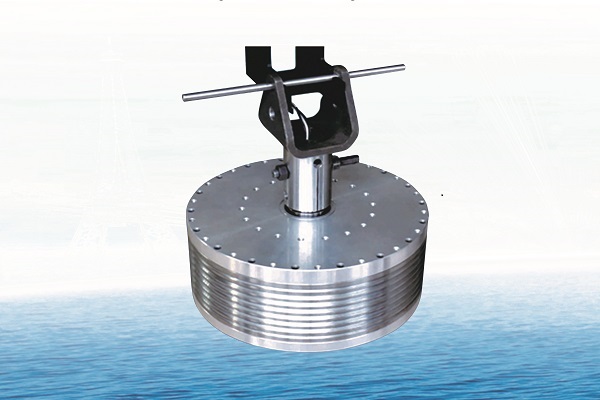

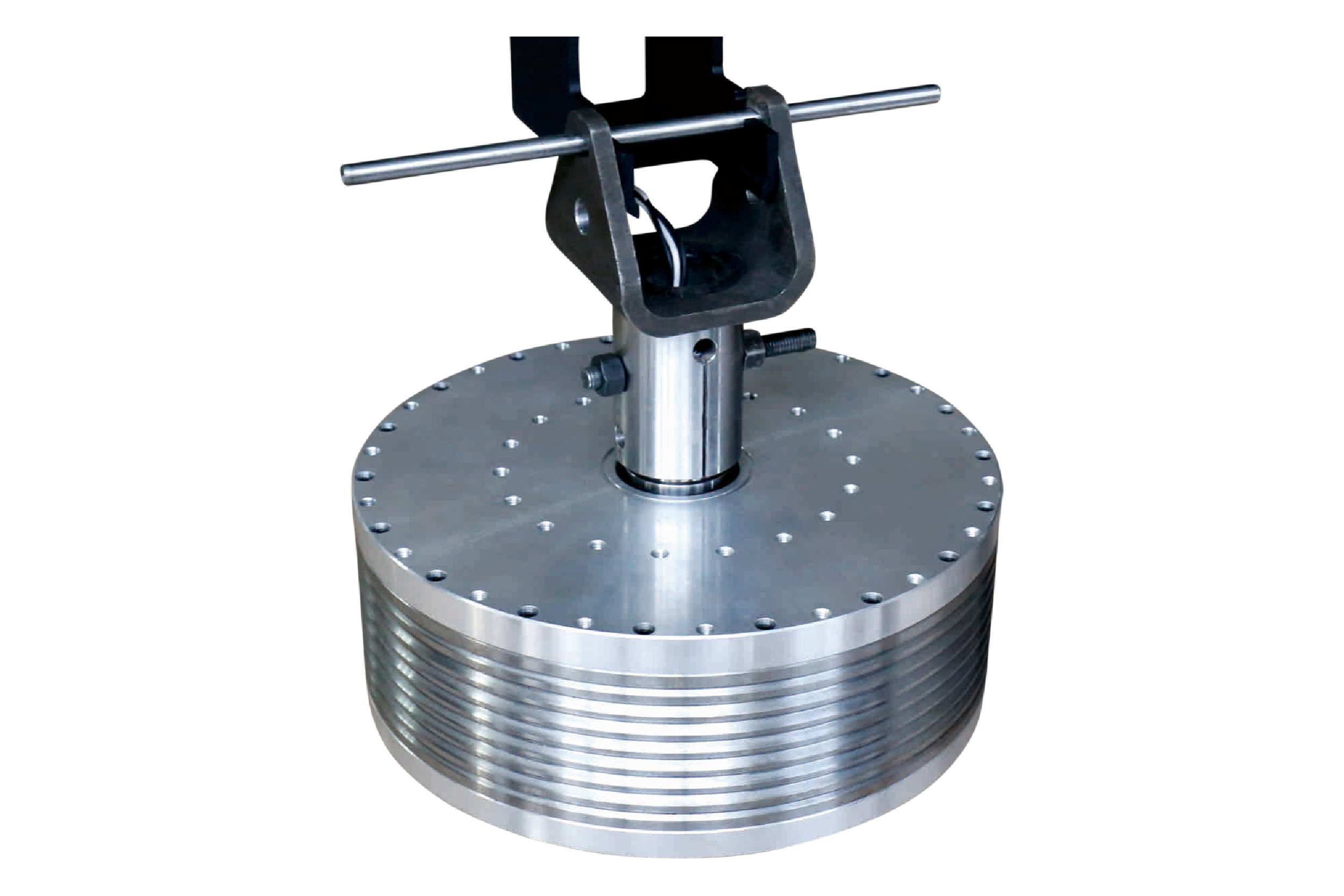

TFM2855 900W Industrial Fan Motor

Description

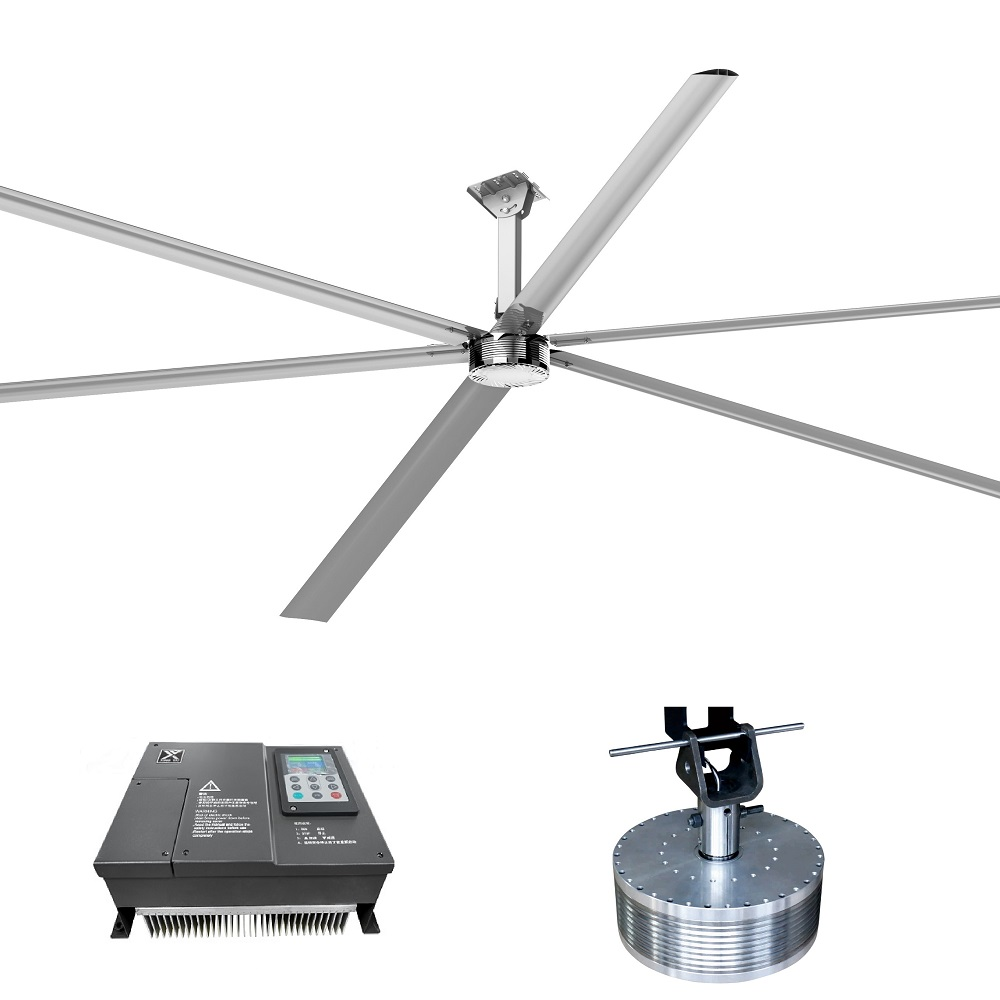

XingTai TFM2855 Direct Drive Motor for 16-20ft Large Industrial Ceiling Fan:

Ultra-low power, Extreme energy saving!

· Power: .900w

· Voltage: It supports both 220V and 380V.

· Pole Number: It has 50 poles

· Magnet Material: NdFeB permanent magnets.

· Insulation: The insulation grade is 150°C, which is F - class insulation.

· Protection: IP55.

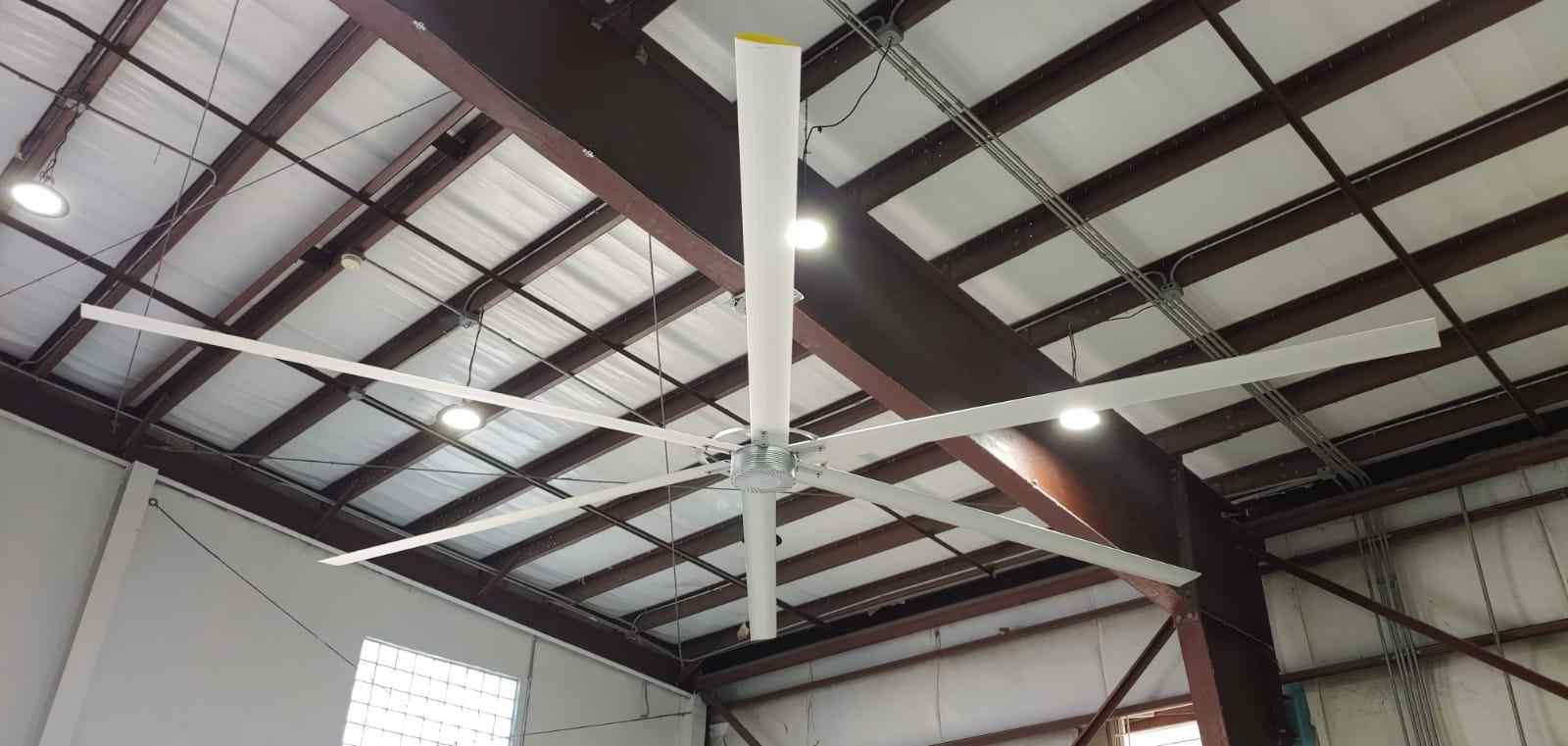

· Application:It is suitable for 12ft to 20ft HVLS fans

TFM2855 Direct Drive Motor Specification

Under high voltage 380V

Motor Specification
Items	Data	Units	Remark
Rated Voltage	380	Vac	380-440Vac
Rated Current	1.8	Amp
Rated Power	900	Watt
Rated Efficiency	85%	PCT
Rated Speed	67	RPM	Related to fan characteristic load
Max Speed	150	RPM
Rated Torque S1	120	Nm
Rated Torque S6	130	Nm
Ke	2200	V/Krpm	Related to Temperature
KT	44.5	Nm/A	Related to Temperature
Temperature Sensor	KTY84-130	N/A	Standard Features
Insulation Grade	150	℃	F-class Insulation
IP Grade	IP55	N/A

Motor Diemension
OD	284	mm
Height	112	mm
Fixed shaft OD	52	mm	Fixed shaft extension diameter
Motor Weight	25.5	kgs
Motor Weight	27	kgs	With lifting lugs

TFM2855 Direct Drive Motor Specification

Under low voltage 220V

Motor Specification
Items	Data	Units	Remark
Rated Voltage	220	Vac	200-240Vac
Rated Current	2.7	Amp
Rated Power	850	Watt
Rated Efficiency	85%	PCT
Rated Speed	67	RPM	Related to fan characteristic load
Max Speed	150	RPM
Rated Torque S1	120	Nm
Rated Torque S6	130	Nm
Ke	2200	V/Krpm	Related to Temperature
KT	44.5	Nm/A	Related to Temperature
Temperature Sensor	KTY84-130	N/A	Standard Features
Insulation Grade	150	℃	F-class Insulation
IP Grade	IP55	N/A

Motor Diemension
OD	284	mm
Height	112	mm
Fixed shaft OD	52	mm	Fixed shaft extension diameter
Motor Weight	25.5	kgs
Motor Weight	27	kgs	With lifting lugs
