Time:2019-11-15

Xingtai new products,Servo drive and servo motor in one unit-

All-in-one Servo

Concentration is the essence!

High efficiency! Space saving!

1. Advanced Features:

Compared to XT690 servo drive,XT690 series all-in-one servo mainly improving in the following aspects.

Improvement

Instruction

Easier to use

Simply plug in the power and control lines,no need encoder lines for motor-to-drive connections,more convenient and reliable use.

More stable pressure

Less pressure fluctuations, especially at high pressures and low speeds

◆ Pressure and speed response faster

Increased a lot on pressure and speed response, meeting the fast response requirements of hydraulic quick-action machines

Improved consistency of injection molding products

The pass rate of injection molded products is improved, especially in fast injection molded products.

Wide voltage range design

AC300V~450V

More complete built-in brake unit

Built-in braking resistor short circuit, brake circuit overcurrent, brake pipe overload, brake pipe straight through and other protection functions

Long life design

Busbar capacitor configuration higher, life longer

The whole machine protection function more perfect

Full range of output to ground short circuit effective protection, buffer relay (contactor) pull-in fault protection

EMC Configuration scheme optimization

A complete solution for practical application requirements and certification requirements (optional EMI filter, common mode suppressor / zero phase reactor, simple filter)

2. XT690YT all-in-one servo specification

Model.No

Rated torque

Rated  speed

Rated current

Rated power

Torque constant

Back EMF constant

Line resistance

Line inductance

Rotary inertia

NM

Rpm

A

KW

Nm/Arms

V/KPRM

Ohm

mH

Kgm210-3

YT04F17.3

41.8

1700

15.21

7.4

2.81

169.9

1.20

16.1

5.8

YT04F20.3

42.2

2000

18.82

8.7

2.37

143.3

0.84

8.34

5.8

YT05F17.3

57.1

1700

20.42

10.2

2.81

169.9

0.73

10.7

6

YT05F20.3

58.2

2000

24.31

12.1

2.6

157.2

0.61

9.01

6

YT07F17.3

86.7

1700

28.22

15.4

2.85

172.3

0.49

8.10

9

YT07F20.3

87.1

2000

36.72

18.2

2.53

153

0.354

4.73

9

YT08F17.3

96.3

1700

35.13

17.1

2.98

180.2

0.416

7.05

10

YT08F20.3

97.4

2000

40.13

20.4

2.58

156

0.313

5.30

10

3. Techinical

Items

Specification











Basic function

Highest frequency

800Hz

Carrier frequency

1kHz ~ 16kHz;

Input frequency resolution

Digital setting:1RPM

Analog setting:Maximum speed×0.1%

control method

Closed loop vector control(VC), V/F control

Starting torque

0Hz/180%(VC)

Speed regulation range

1:1000 (VC)

Steady speed accuracy

±0.02%(VC)

Torque control accuracy

±5%(VC)

V/F curve

Straight type;

Acceleration curve

Straight line, S curve, ST curve

Overload capability

150% rated output current 60s; 180% rated output current 3s.

Motor overheat protection

KTY84 temperature protection

Encoder support

Software encoder, resolver, ABZ photoelectric encoder, multi-turn absolute encoder

protection

Features

Protection Features

Motor short circuit protection, input and output phase loss protection, over current protection, over voltage protection, under voltage protection,Overheat protection, overload protection, etc.

communication

Features

Modbus

Support Modbus-RTU protocol

CAN

Support communication protocols such as CANOpen and CANLINK

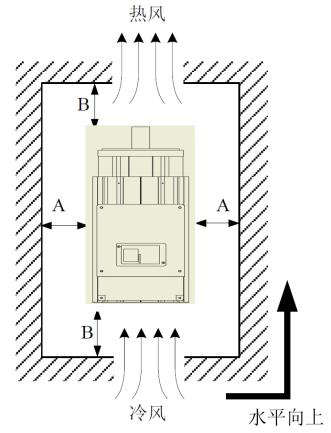

4. Installation space

XT690YT Each power level installation space

 Power level

Size requirements

1115 kw

A ≥ 20 cm

B ≥ 50 cm

18.522 kw

A ≥ 25 cm

B ≥ 50 cm

2237 kw

A ≥ 30 cm

B ≥ 60 cm

3763 kw

A ≥ 40 cm

B ≥ 60 cm
